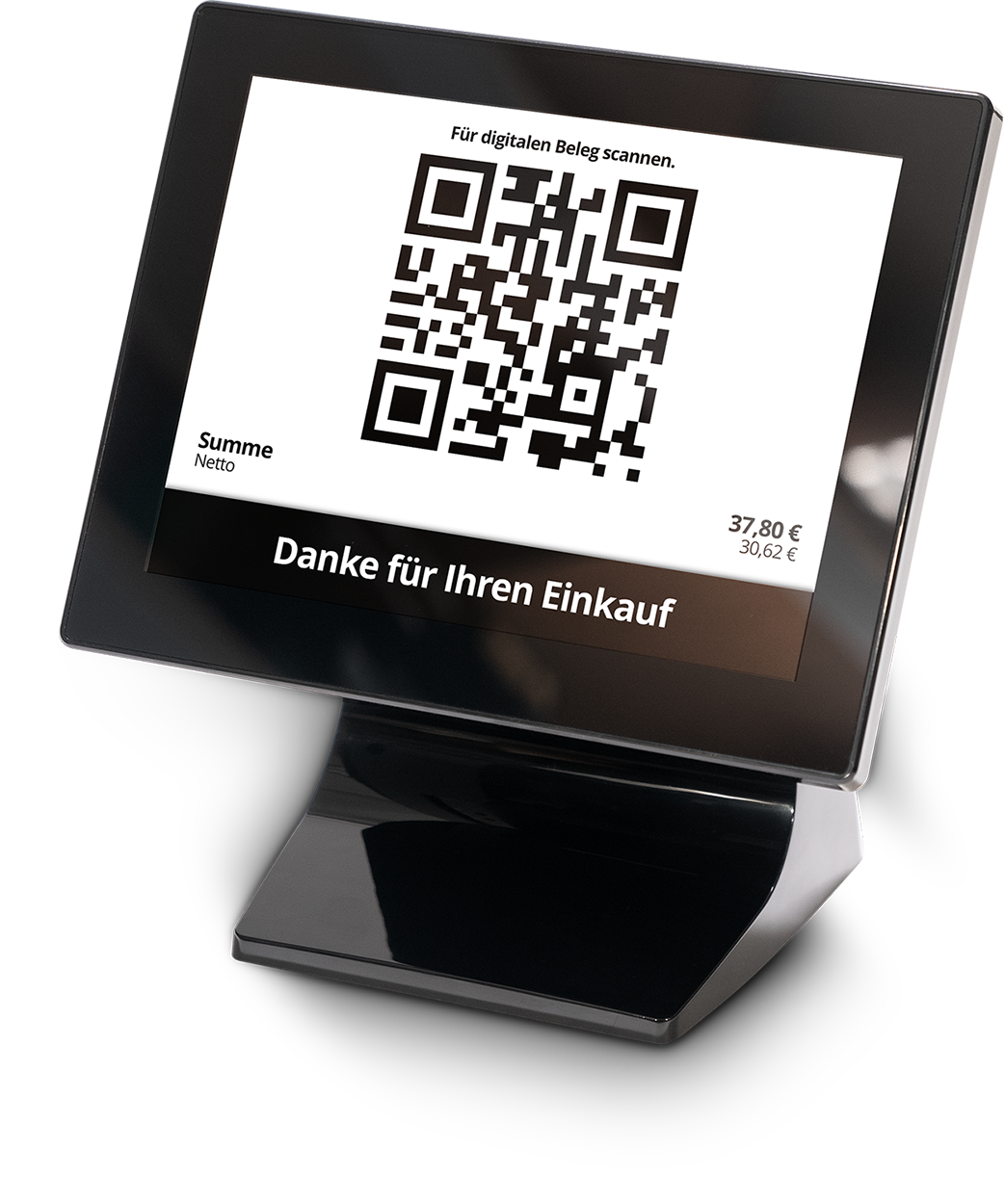

Customer Display C60

Before you start using the customer display, please read these instructions carefully.

Licence key

To use the customer display, the licence key has to be activated first. How to activate it is described in the chapter Additional Modules.

Scope of delivery

The package includes:

• 1x customer display C60

• 1x USB cable

• 1x product code

Connect customer display

The customer display is connected to the register via a USB connector. The USB connectors on the primasello register are located on the bottom of the device.

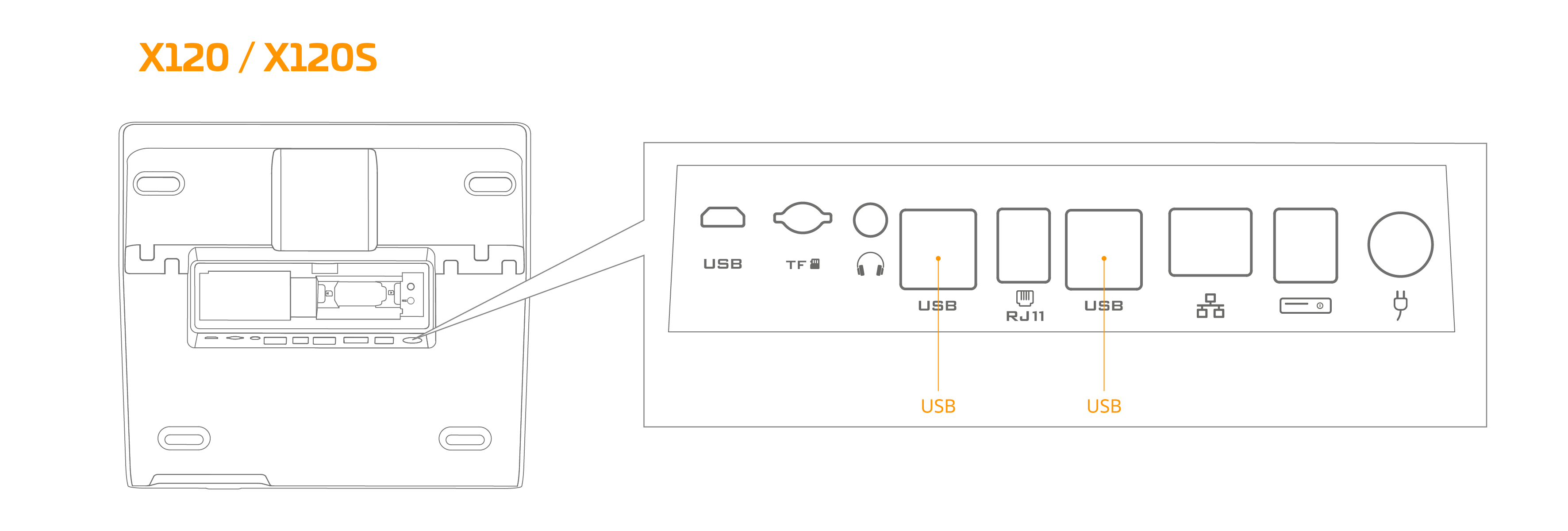

Connector X120 / X120s

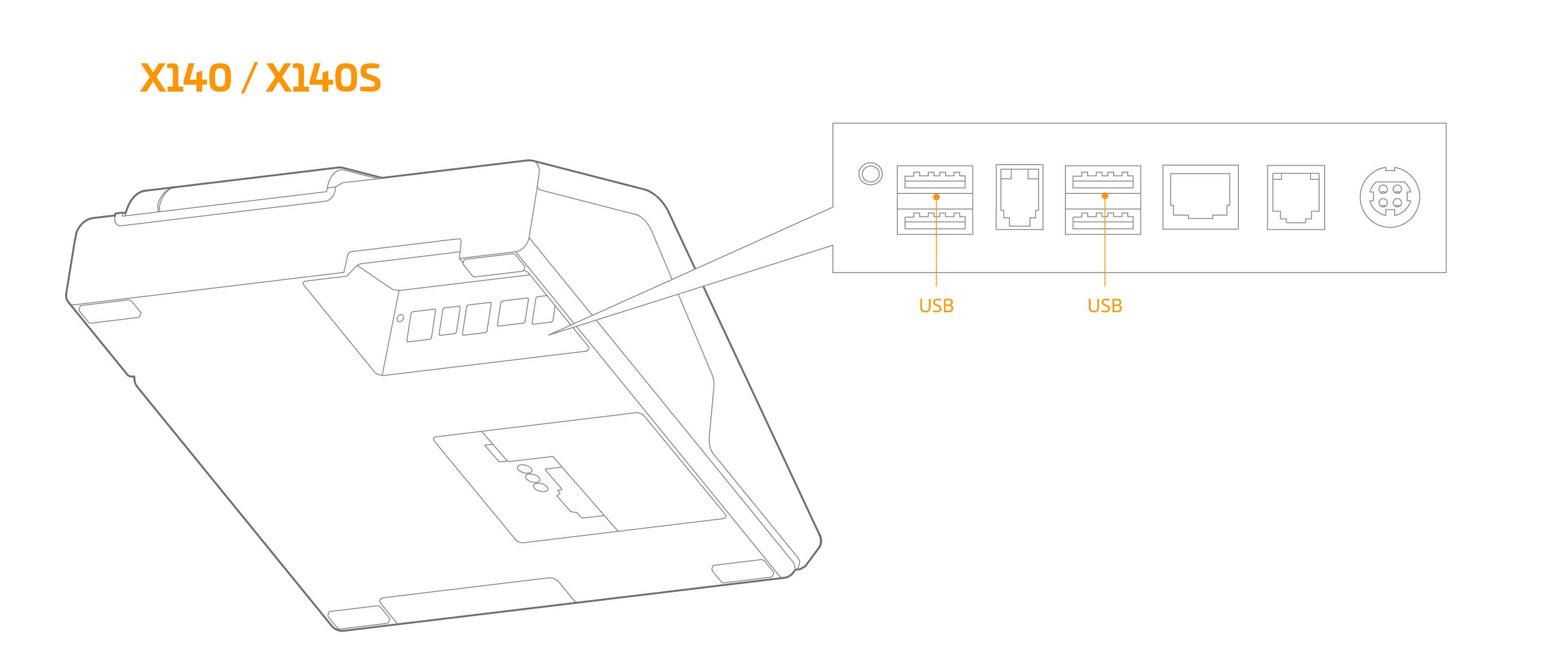

Connector X140 / X140s

Connector A1050

Step by step

To connect the customer display, perform the following steps in sequence:

1. The primasello cash register has to be switched off.

2. Connect the customer display cable to the cash register connector.

3. Place the customer display and primasello cash register on a stable surface.

4. Switch on the primasello cash register.

The customer display is then ready for immediate use, no further setup is necessary.

Digital receipt

The customer display is ideal for displaying the digital receipt. How this can be configured is described in the chapter Digital receipt from asello.
