X320

Before you start using your primasello cash register, please read the quick start guide provided carefully. Alternatively, you can also find all the important information in the Getting Started chapter.

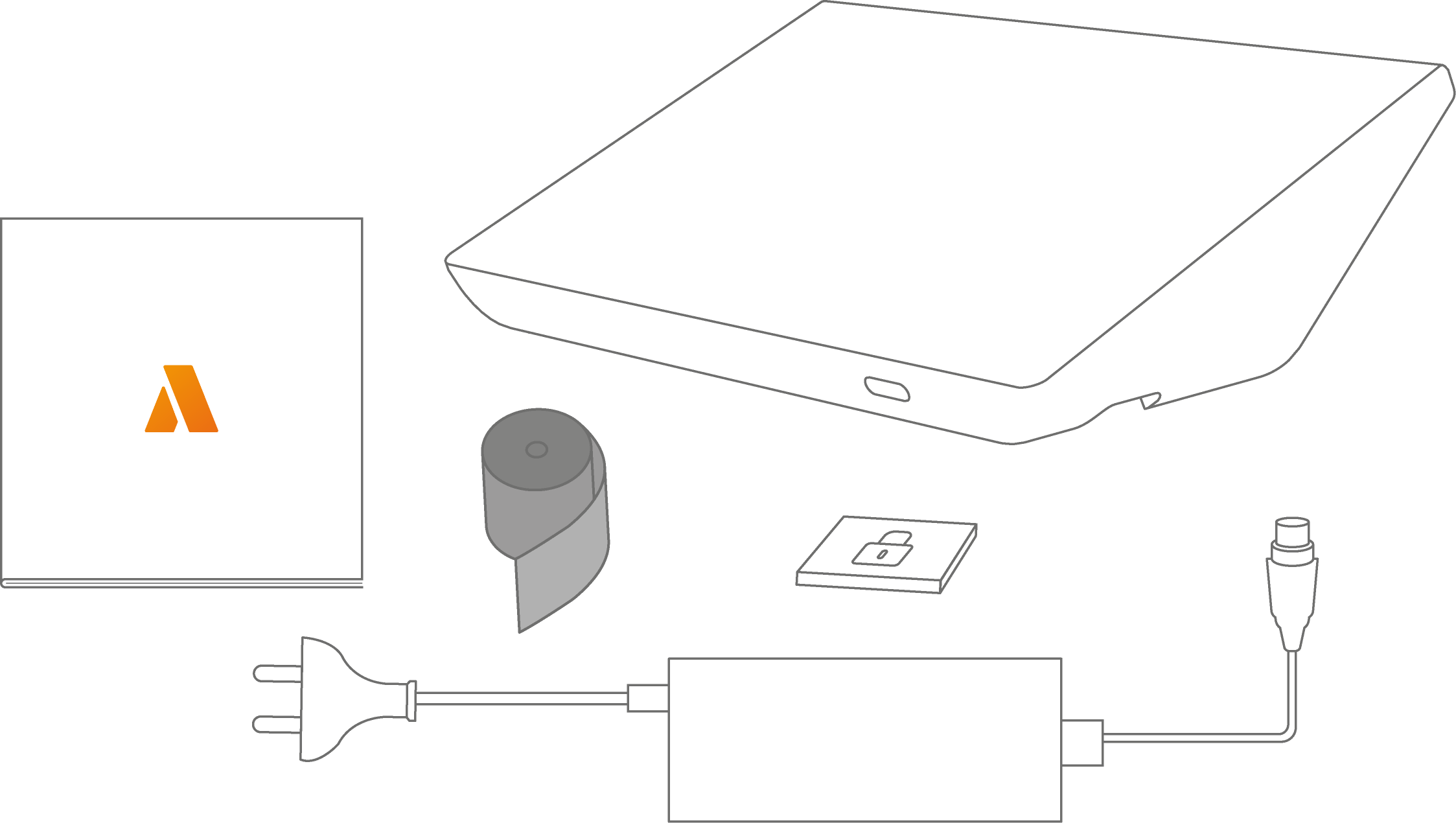

Scope of delivery

The package includes:

• 1x primasello X320 cash register

• 1x quick start guide

• 1x power supply unit with power cable

• 1x 58mm thermal paper for printer

• 1x security module

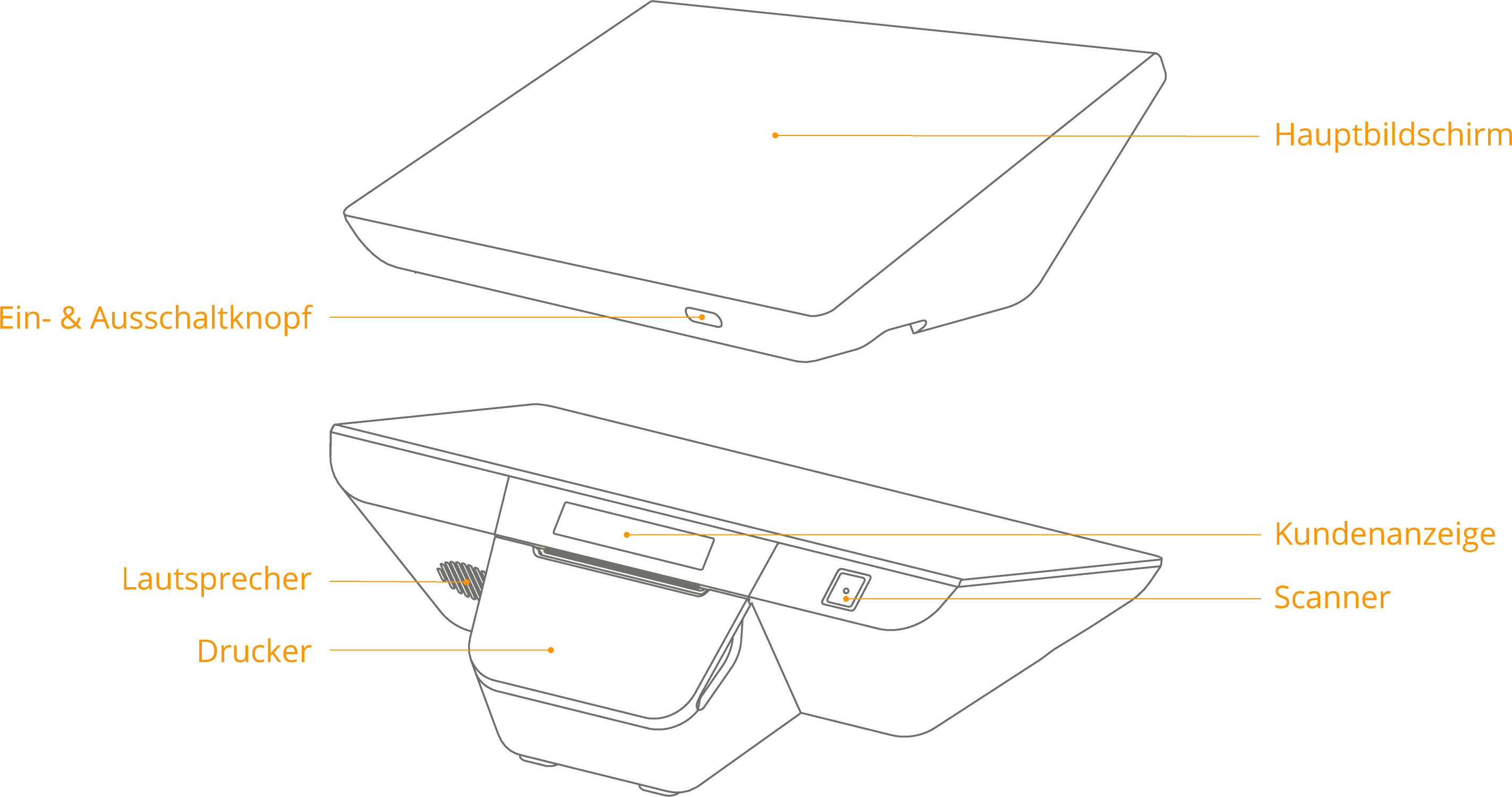

Components

Main screen

Touch screen for operation.

Printer

Prints the receipts created when switched on.

Customer display

7-segment display for customers with information on the open receipt.

On/off button

If the device is switched off, press briefly to start it up. Press and hold the power button for 2-3 seconds to choose between ‘Shut down’ or ‘Restart’. To force the device to switch off, press and hold the power button for 11 seconds. The system will shut down.

Speaker

The speaker for outputting signal tones.

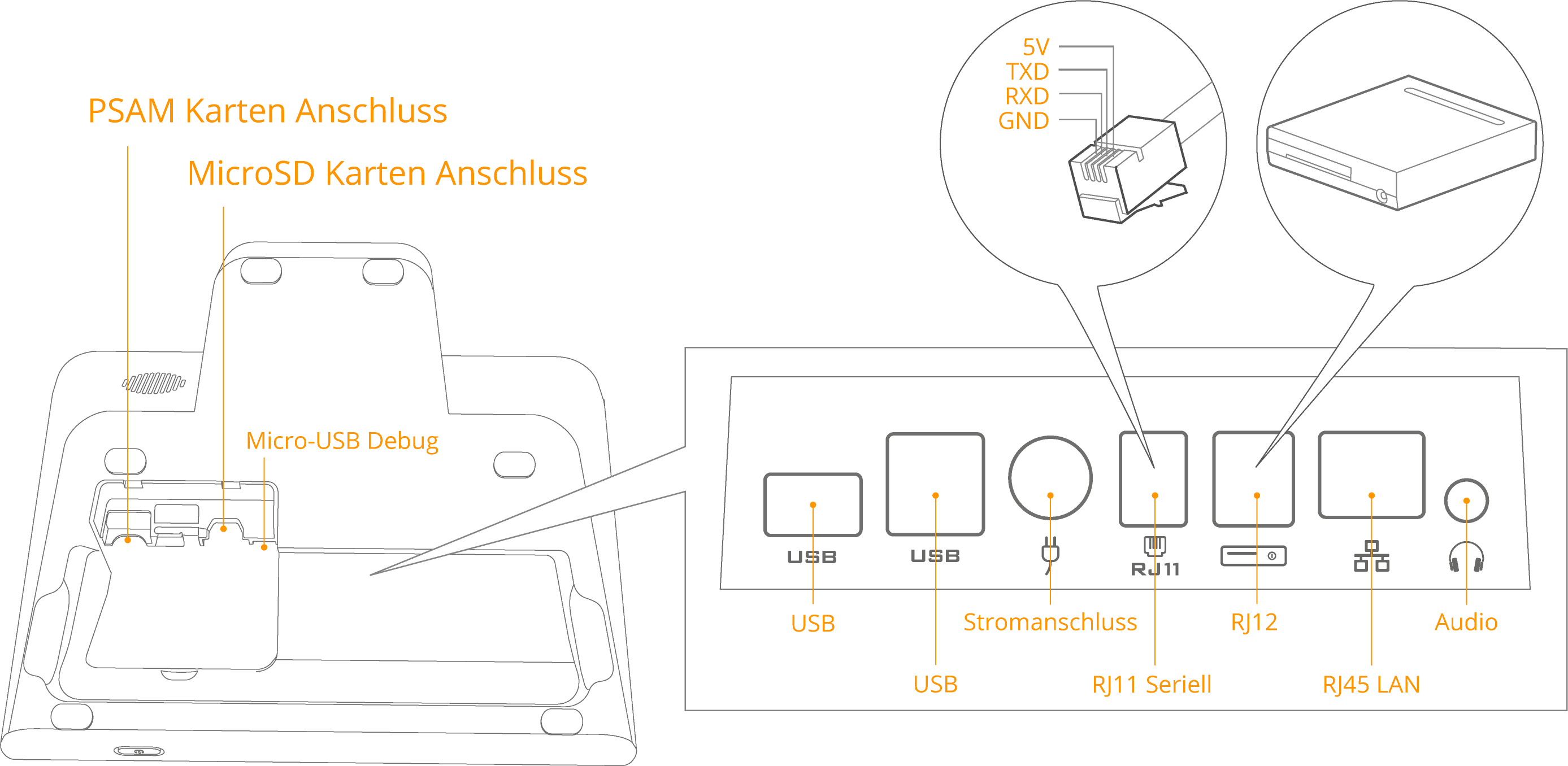

Connectors

Micro USB DEBUG port

For troubleshooting purposes only. During debug mode, the USB ports on the bottom of the device will not function. Only the debug USB port next to the power button can be used.

MicroSD card connector

For expanding the internal data storage using a MicroSD card (max. 64GB).

Audio Jack

An audio jack for connecting external speakers or headphones.

USB port

USB 2.0 port for connecting peripheral devices.

Serial connector (RJ11)

Connection of peripheral devices via a serial port.

Ethernet / LAN (RJ45)

Ethernet connection for an internet connection in the local network.

Cash drawer connection (RJ12)

For connecting an external cash drawer. The connection is not permanently energised, but sends current pulses with a frequency of 100ms. Different types of 9-24V cash drawers are supported.

Power connection

Connection of the power supply unit for the power supply.

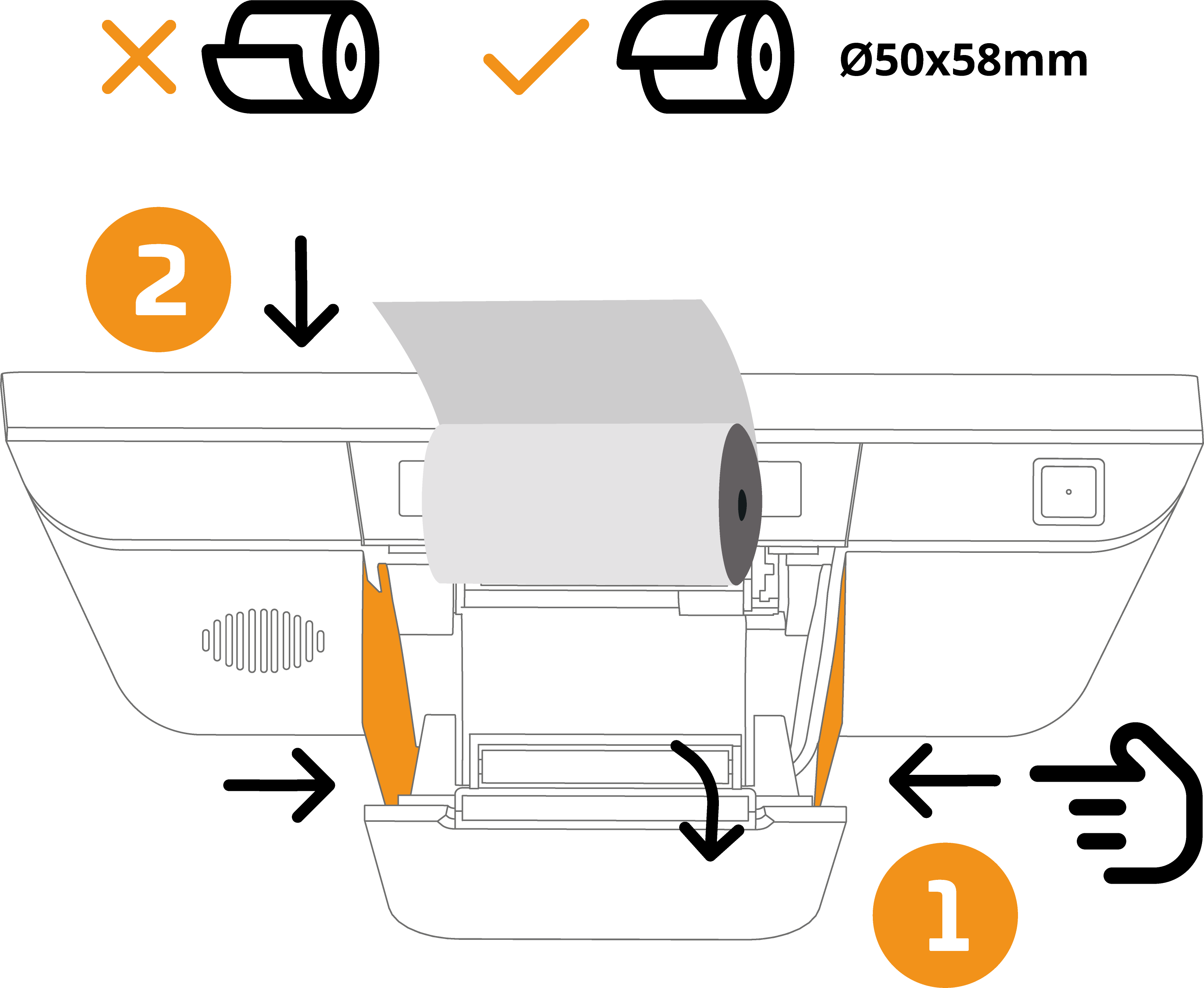

Insert receipt roll

To insert the receipt roll, first open the printer lid in the direction of the arrow, then insert the 50x58mm thermal paper roll and finally close the printer lid.

Notice

When changing the receipt roll, please ensure that the core of the last roll has been removed before inserting the new roll.

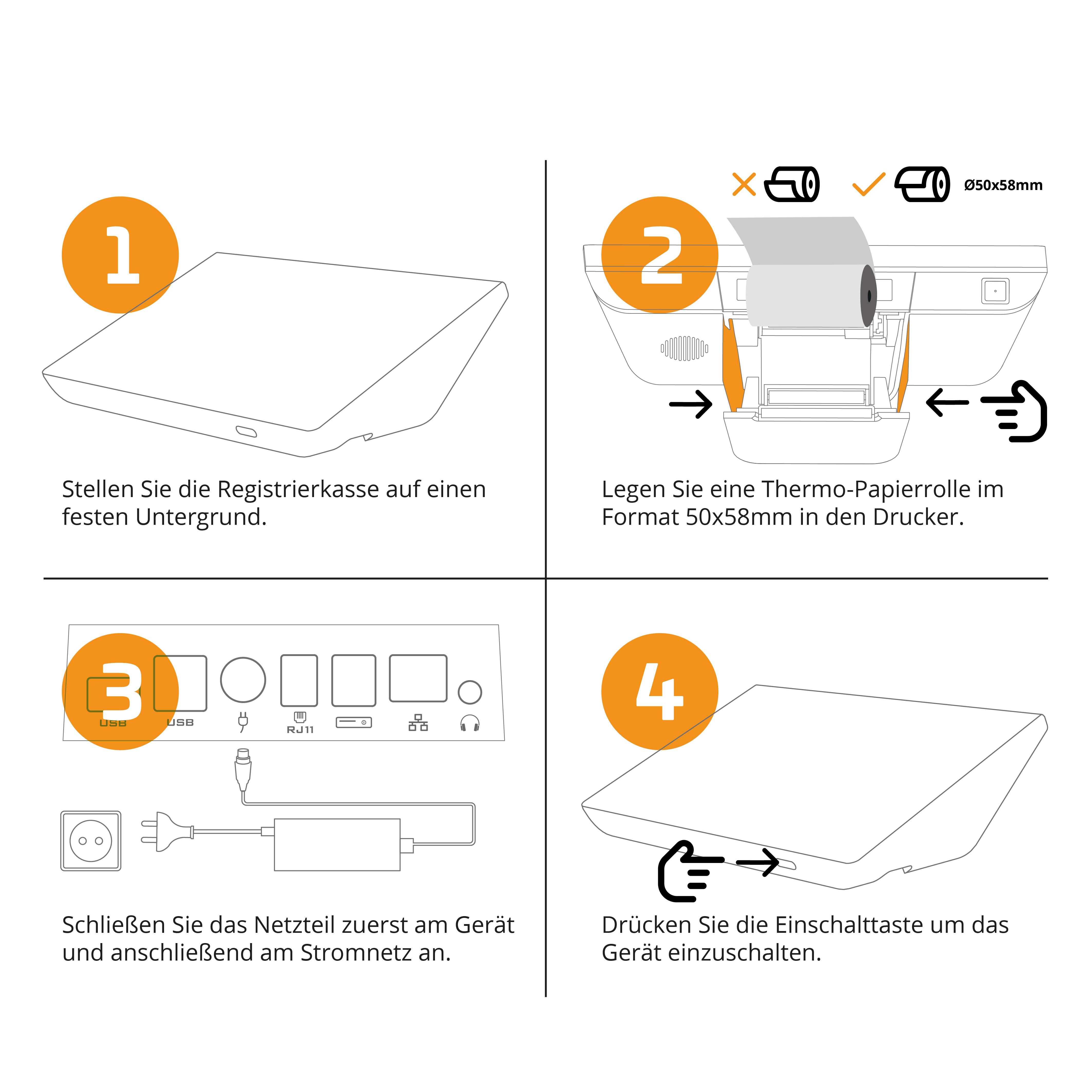

Quick Start

1. Place the cash register on a stable surface.

2. Insert the 50x58mm thermal paper roll into the printer.

3. First connect the power supply to the device and then to the mains.

4. Press the power button to switch on the device.
