X140s

Before you start using your primasello cash register, please read the quick start guide provided carefully. Alternatively, you can also find all the important information in the Getting Started chapter.

Scope of delivery

The package includes:

1x primasello X140s cash register
1x quick start guide (including product certificate)
1x power supply unit with power cable
1x 80mm thermal paper for printers
1x security module

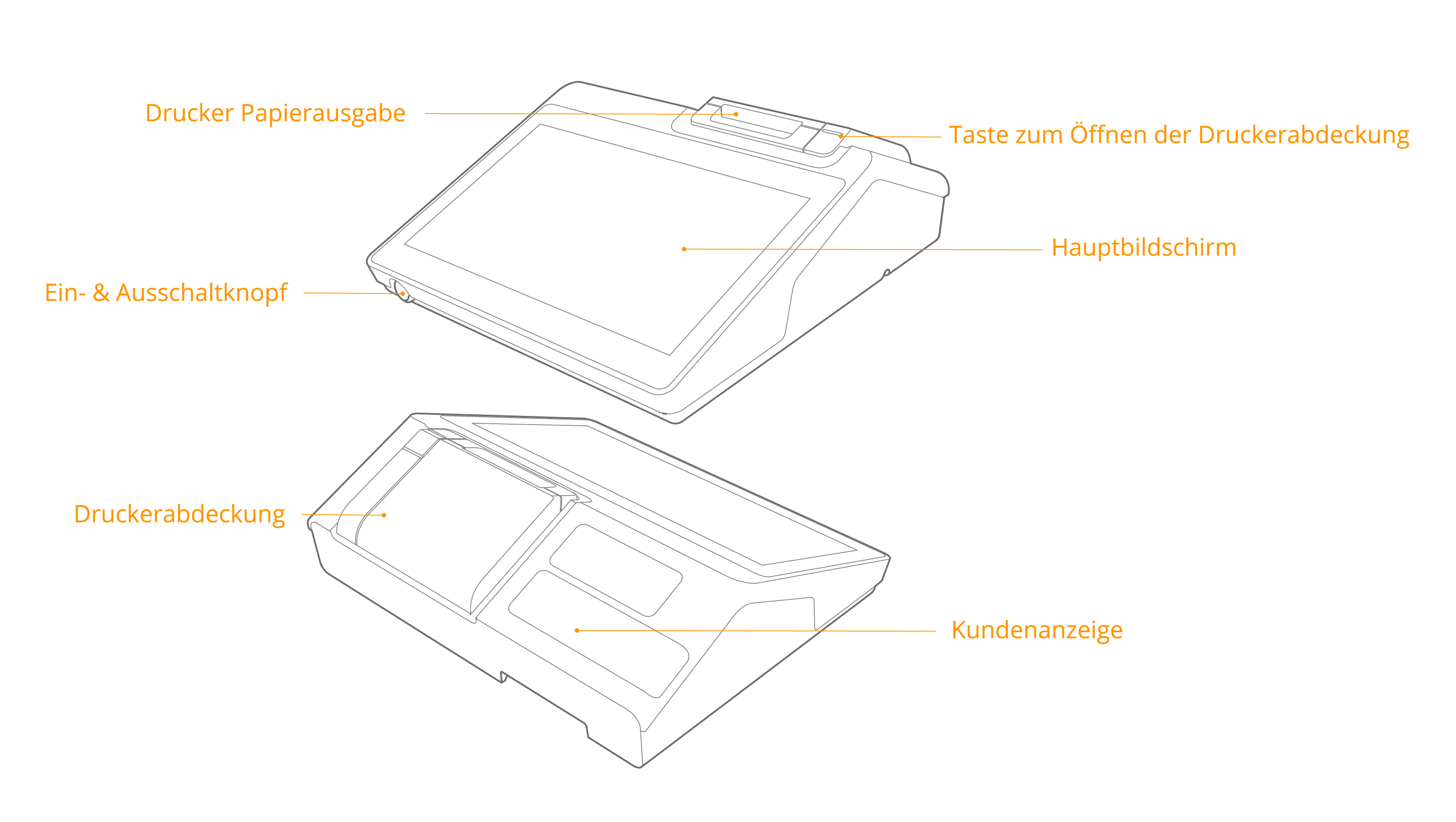

Components

Main screen

Touch screen for operation.

Printer

Prints the created receipts when switched on. To open the printer lid, press the button next to the paper output slot. Do not use force to open the lid.

Customer display

Screen for customers with information about the open receipt.

On/off button

If the device is switched off, press briefly to start it up. Press and hold the power button for 2-3 seconds to choose between ‘Shut down’ or ‘Restart’. To force the device to switch off, press and hold the power button for 11 seconds. The system will shut down.

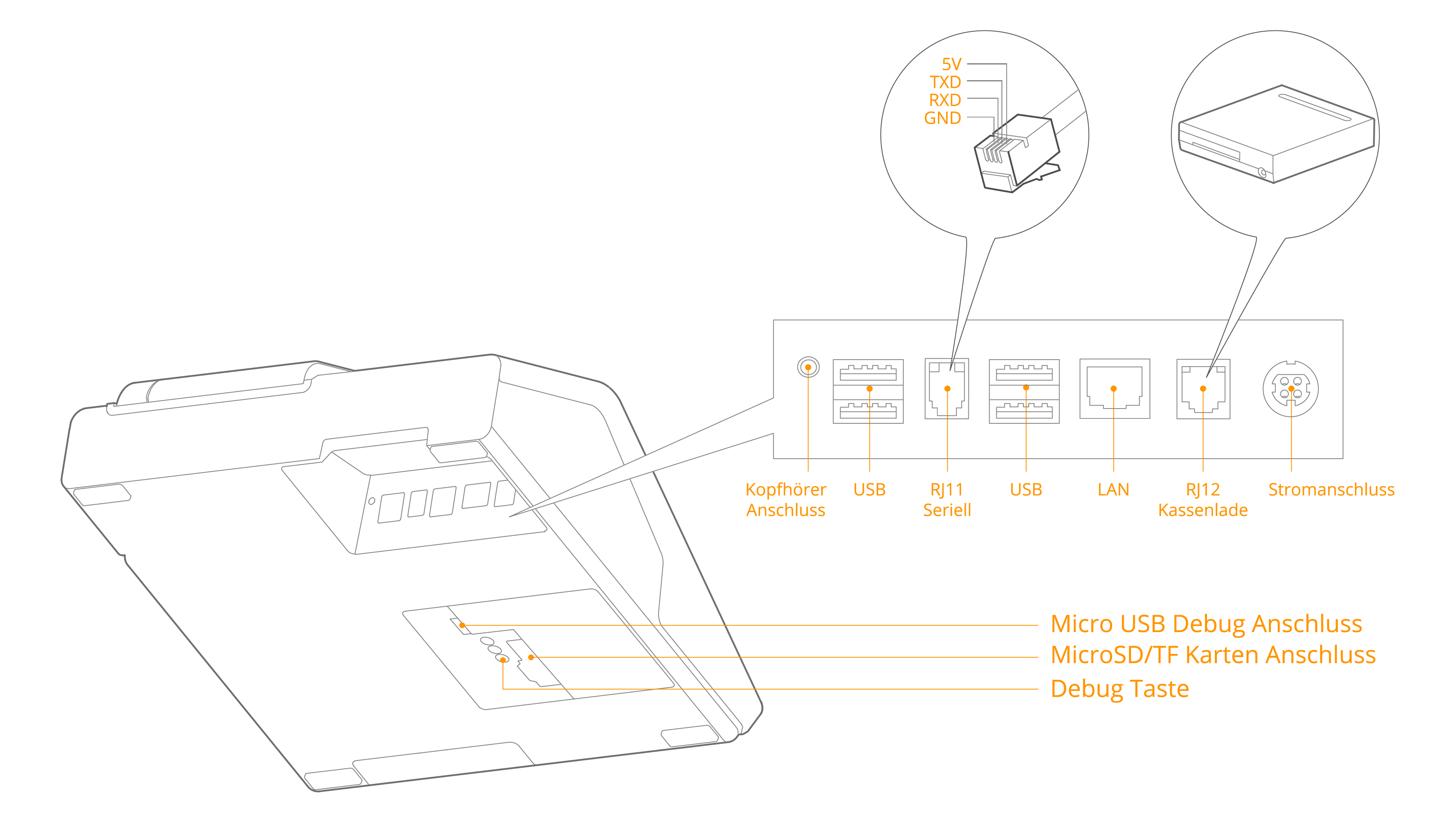

Connectors

Audio jack

An audio jack for connecting external speakers or headphones.

USB port

USB 2.0 port for connecting peripheral devices.

Serial connector (RJ11)

Connection of peripheral devices via a serial port.

Ethernet / LAN (RJ45)

Ethernet connection for an internet connection in the local network.

Power connection

Connection of the power supply unit for the power supply.

Cash drawer connection (RJ12)

For connecting an external cash drawer. The connection is not permanently energised, but sends current pulses with a frequency of 100ms. Different types of 9-24V cash drawers are supported.

MicroSD/TF card connector

For expanding the internal data storage using a MicroSD/TF card (max. 64GB).

Micro USB DEBUG port

For troubleshooting purposes only. During debug mode, the USB port on the bottom of the device does not function. Only the USB port next to the power button can be used.

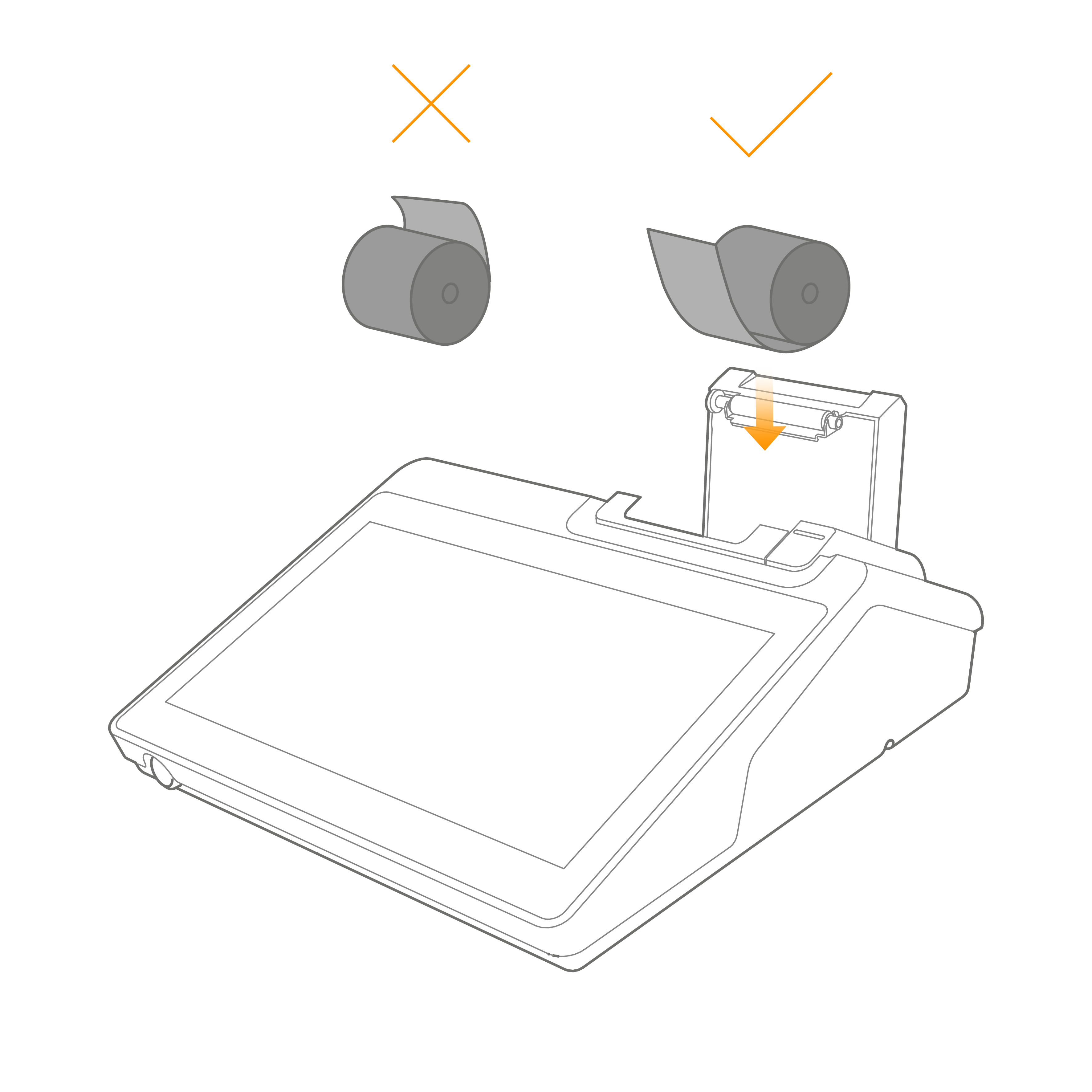

Insert receipt roll

Notice

When changing the receipt roll, please ensure that the core of the last roll has been removed before inserting the new roll.

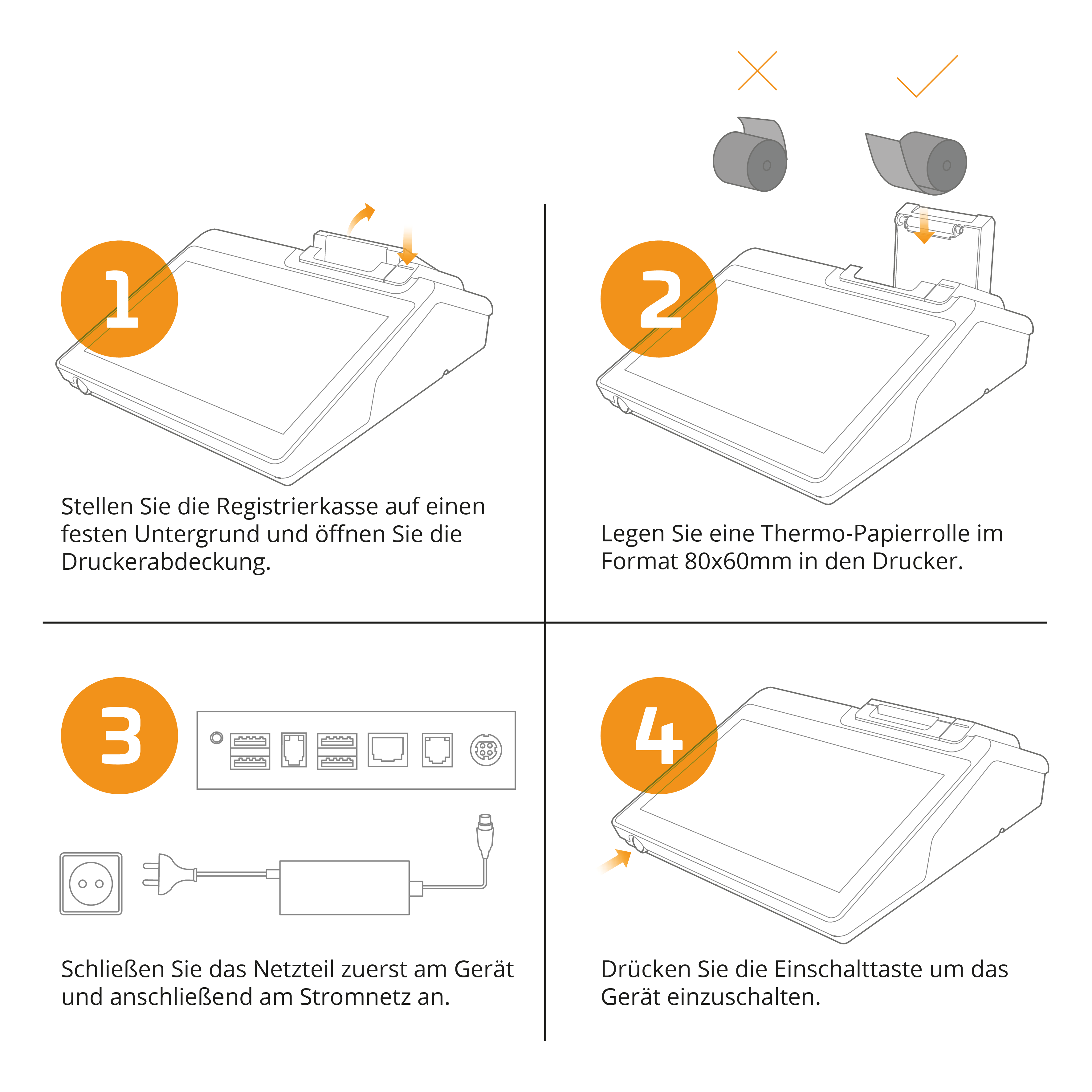

Quick start
