X120s
Before you start using your primasello cash register, please read the quick start guide provided carefully. Alternatively, you can also find all the important information in the Getting Started chapter.

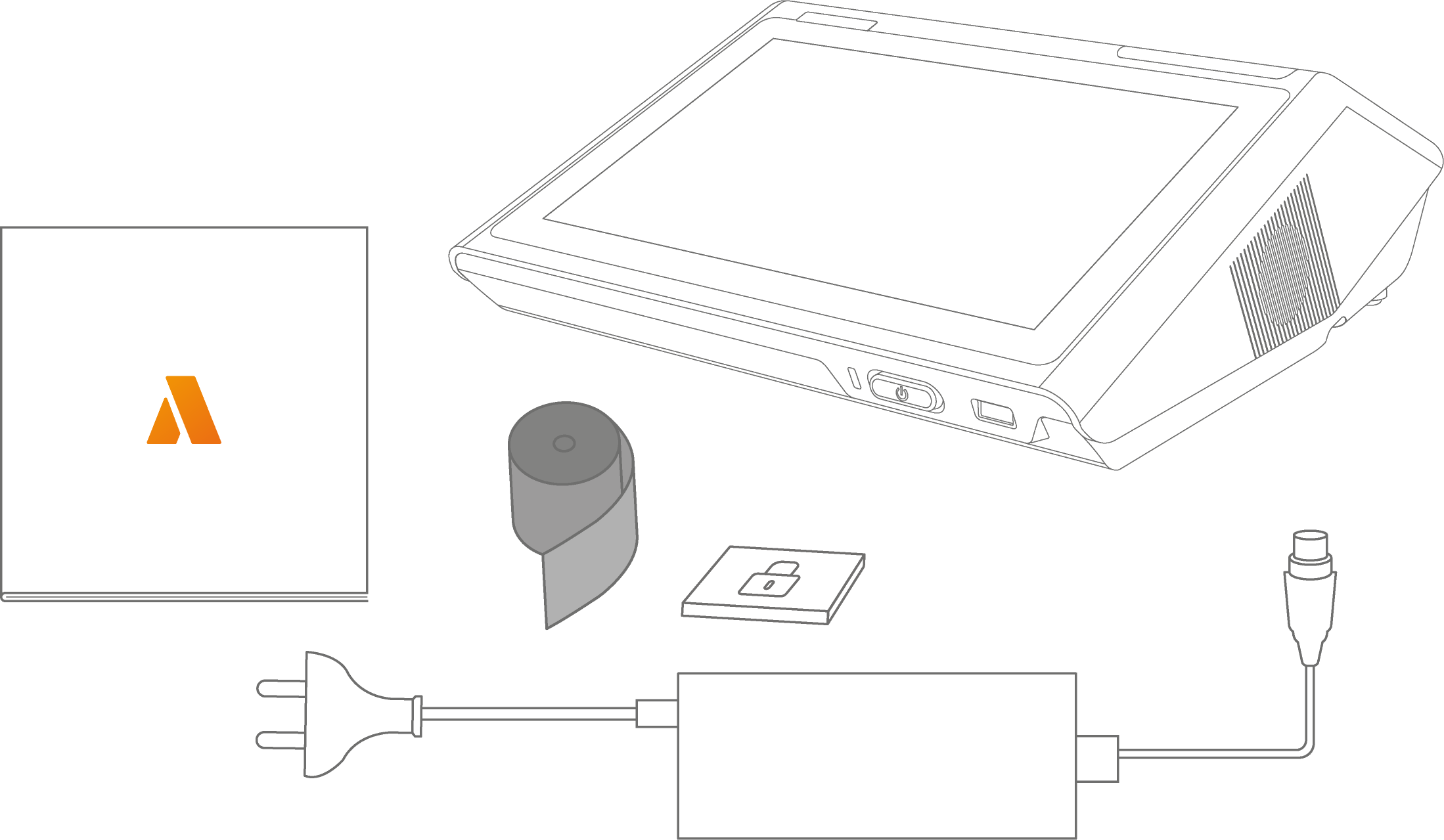

Scope of delivery
The package includes:
1x primasello X120s cash register
1x quick start guide
1x power supply unit with power cable
1x 58mm thermal paper for printers
1x security module

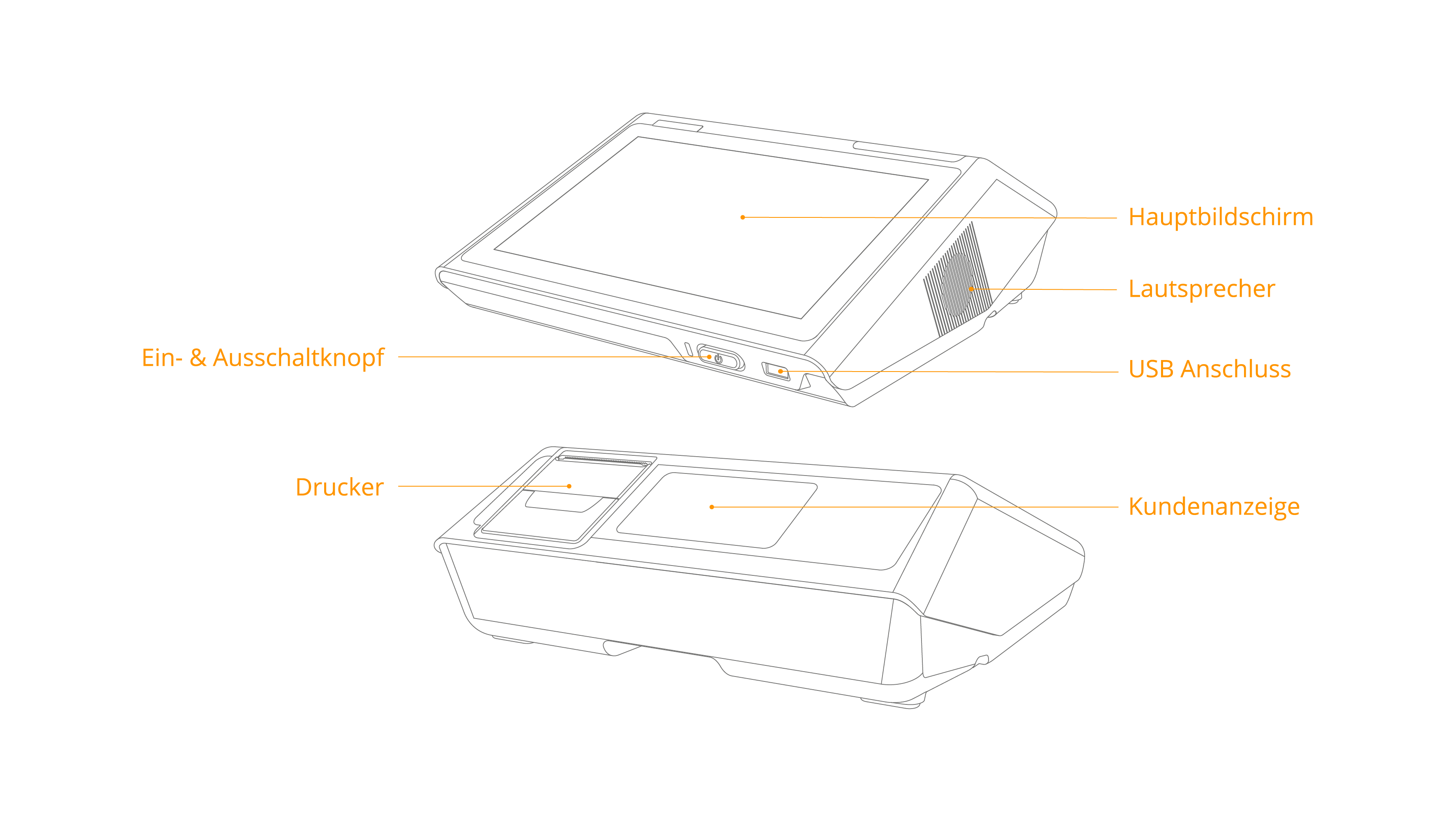

Components
Main screen
Touch screen for operation.
Printer
Prints the created documents when switched on.
Customer display
Screen for customers with information about the open receipt.
On/off button
If the device is switched off, press briefly to start it up. Press and hold the power button for 2-3 seconds to choose between ‘Shut down’ or ‘Restart’. To force the device to switch off, press and hold the power button for 11 seconds. The system will shut down.
Speaker
The speaker for the output of signal tones.
USB port
USB 2.0 port on the front for connecting peripheral devices.

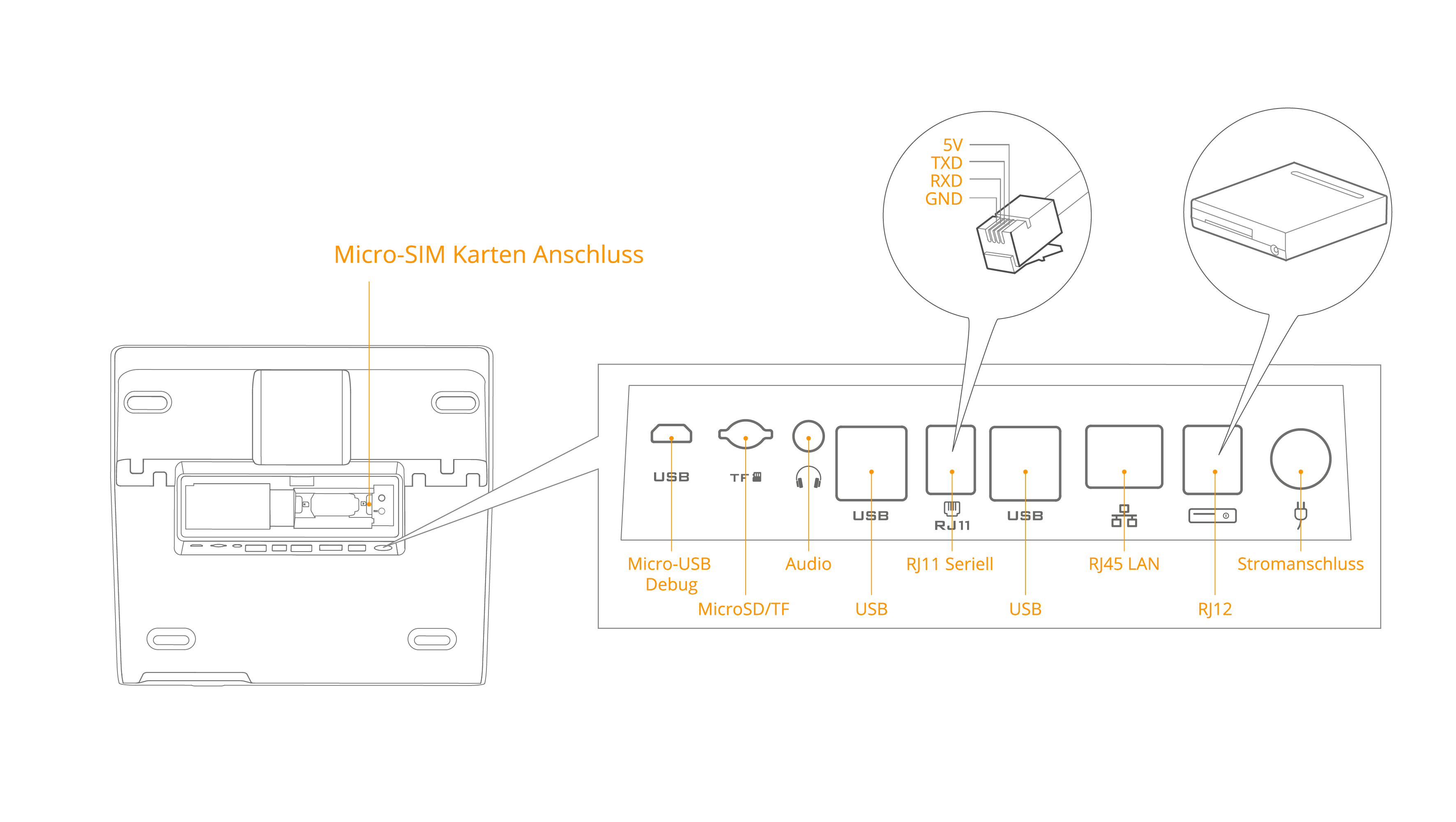

Anschlüsse
Micro USB DEBUG port
For troubleshooting purposes only. During debug mode, the USB port on the bottom of the device does not function. Only the USB port next to the power button can be used.
MicroSD/TF card connector
For expanding the internal data storage using a MicroSD/TF card (max. 64GB).
Audio jack
An audio jack for connecting external speakers or headphones.
USB port
USB 2.0 port for connecting peripheral devices.
Serial connector (RJ11)
Connection of peripheral devices via a serial port.
Ethernet / LAN (RJ45)
Ethernet connection for an internet connection in the local network.
Cash drawer connection (RJ12)
For connecting an external cash drawer. The connection is not permanently energised, but sends current pulses with a frequency of 100ms. Different types of 9-24V cash drawers are supported.
Power connection
Connection of the power supply unit for the power supply.

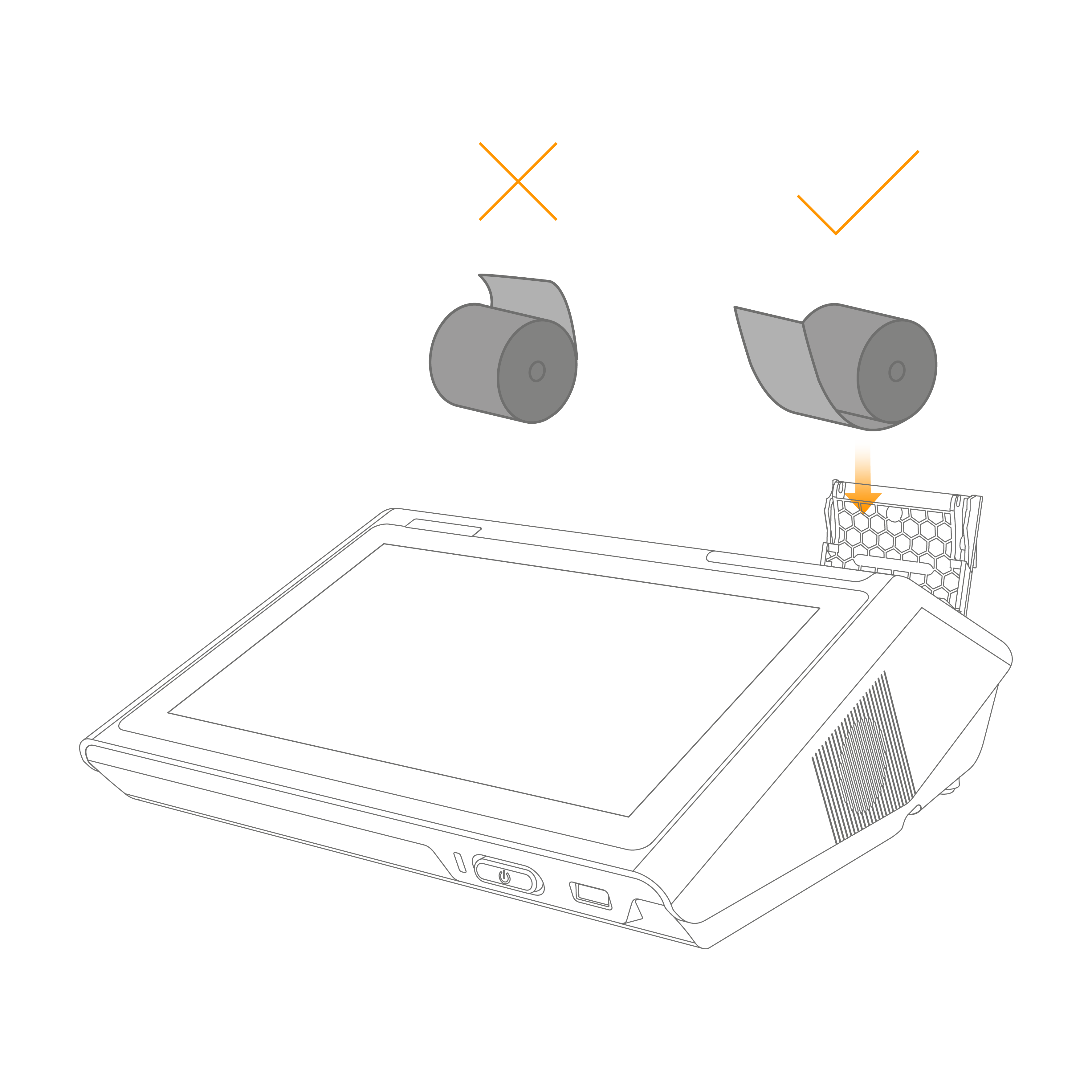

Insert receipt roll
Notice
When changing the receipt roll, please ensure that the core of the last roll has been removed before inserting the new roll.

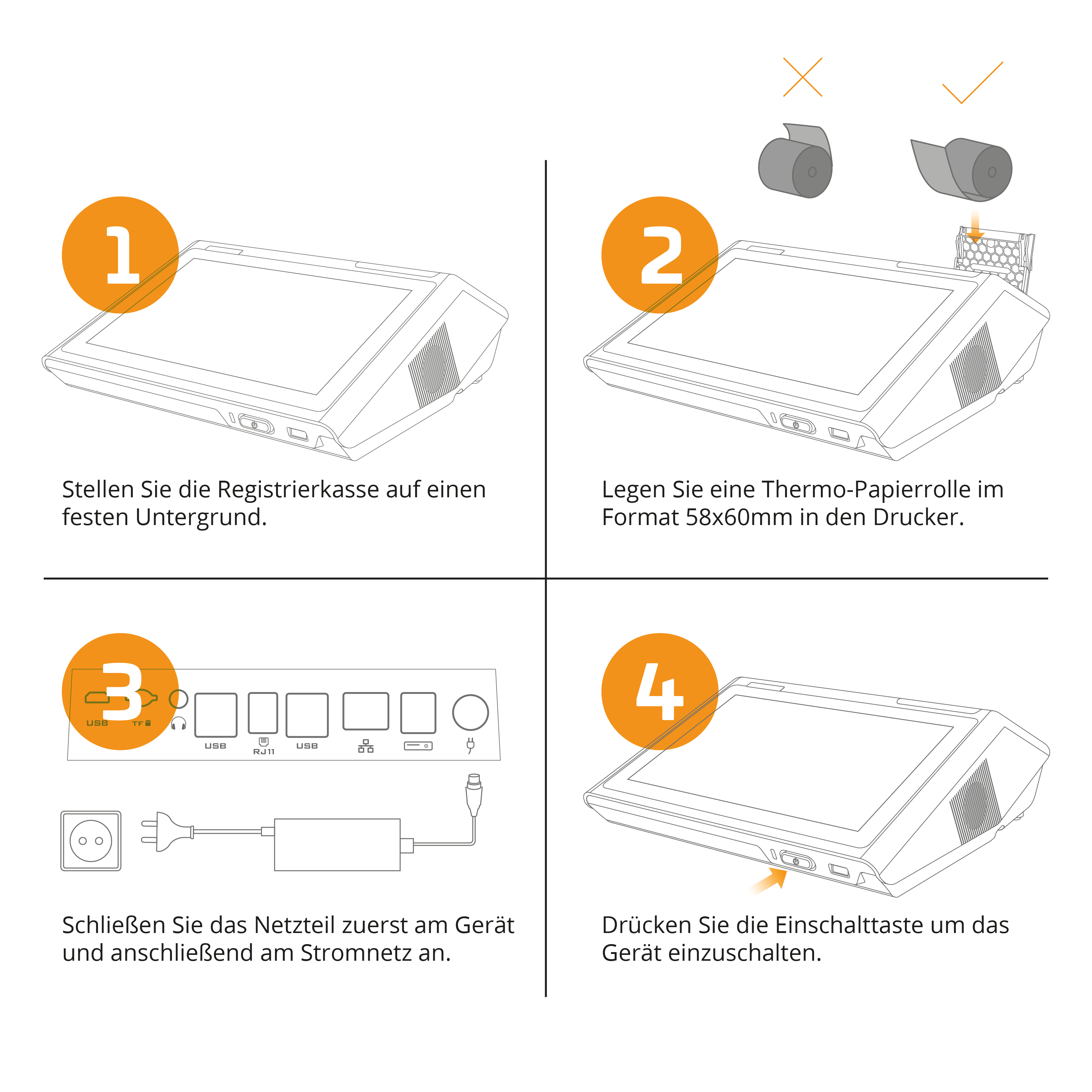

Quick start
